Fiberglass reinforcement
Composite glassfiber reinforcement is one of the most popular and modern building material spread all over the world.
This popularity is explained by the fact that composite reinforcement has some advantages in comparison with steel reinforcement. Everybody knows that steel reinforcement is very heavy and it takes a lot of energy and time to install it. Moreover, it exposed to corrosion which could cause earlier destruction of concrete construction.
Composite reinforcement is light weight and noncorrosive that means that using of it is profitable.
Characteristics of steel and composite reinforcement compared | ||
Characteristics | Glassfiber reinforcement | Metal reinforcement A-III (A400C) |
Material | Glass roving bind by polymer on the base of epoxy resin | Steel |
Maximum tensile stress, not less than, Mpa | 1000 | 390 |
Young’s Modulus, Mpa | 50 000 | 200 000 |
Unit extension, % | 2,2 | 25 |
Heat conductance | 0,35 | 46 |
Line expansion coefficient | 9-12 | 13-15 |
Specific Gravity | 1,9 | 7,8 |
Corrosion resiastance | noncorrosive | corrosive |
Thermal conductivity | nonconductive | conductive |
Electric conductivity | dielectric | electrically conductive |
Length | On the customer’s request (in rods or coils) | Rods with length from 6 to 12 meters |
Durability | Expected durability – 80 years | According to building regulation |
Terms of substitution of steel reinforcement with composte reinforcement according to its properties | 4 mm 6 mm 8 mm 10 mm 12 mm | 8 АIII 10 AIII 12 АIII 14 АIII 16 АIII |
Properties and application of composite reinforcement
Composite reinforcement is the product made of glass fibers bind with thermosetting resins. Its main specialty is lightness mass index calculated using the unit of volume is only 2 g/mm3. Working with this material is much easier and more profitable than working with metal reinforcement. There are less spendings while transporting and armoring.

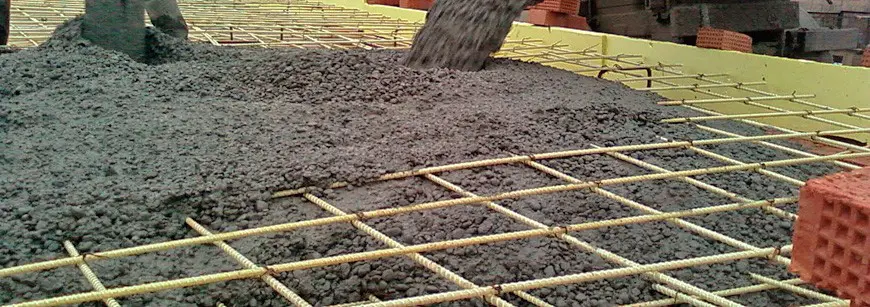

- Composite reinforcement is used while building civil, public and industrial constructions as reinforcing frame of foundations, floors and beams.
- In road repairing works composite reinforcement is used for arranging of fillings, traffic-bearing surface in bridge construction and in highway barriers. It is resistant to all types of deicing agents and might be used in all regions.
